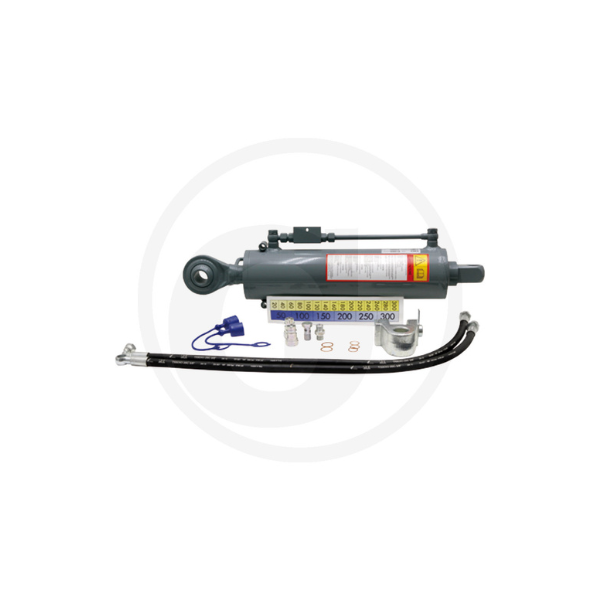

CAT 3/3 Hydraulic Top link Ball – Knuckle – 700min x 1028max

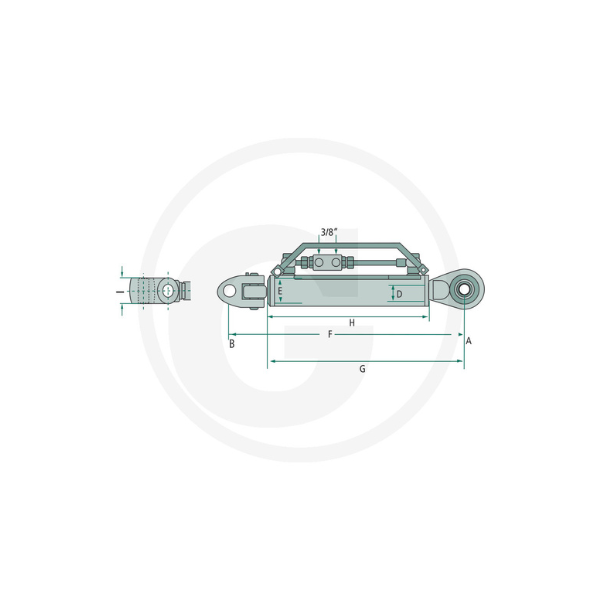

A cat.: 3 / 32

B cat.: 3 / 32

F (mm): 700 / 1028

Piston rod Ø D (mm): 45

Cylinder Ø inner E (mm): 105

Lifting force (t): 14

Tensile force (t): 9

Stroke (mm): 328

I (mm): 51

H (mm): 453

G (mm): 553

Type: Clevis joint/ball joint

Top link type: hydraulic
